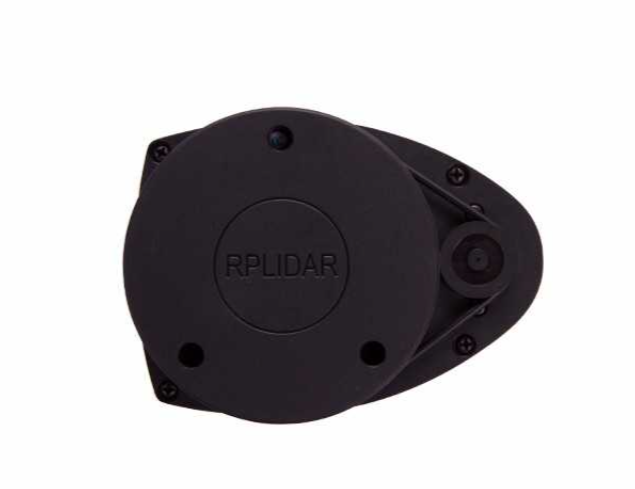

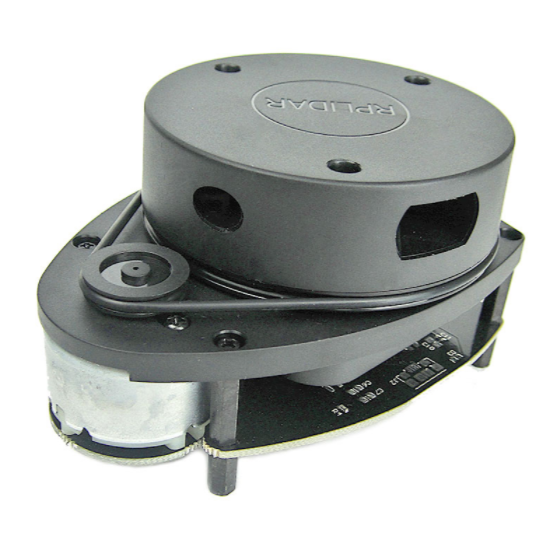

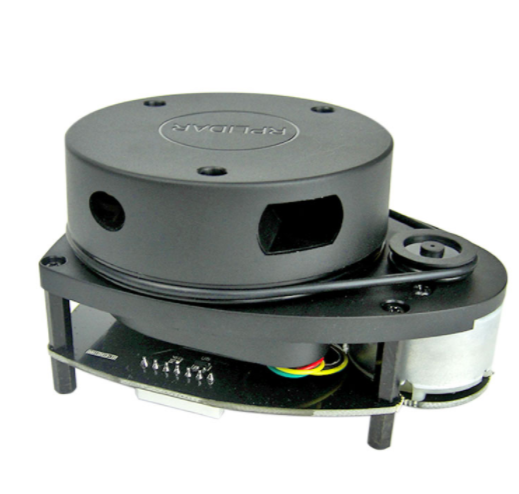

RPLiDAR A1M8 360 Degree Laser Range Finder – 6m (Radius Range)

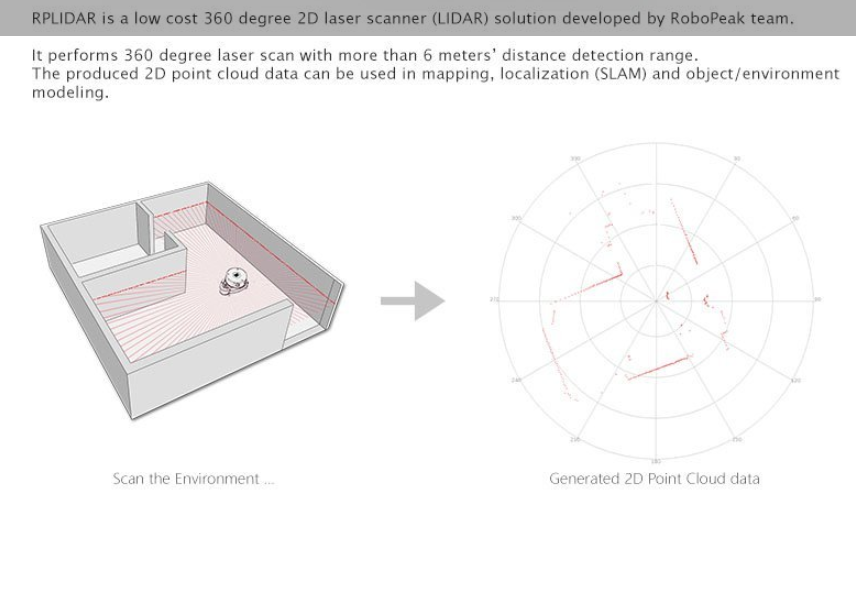

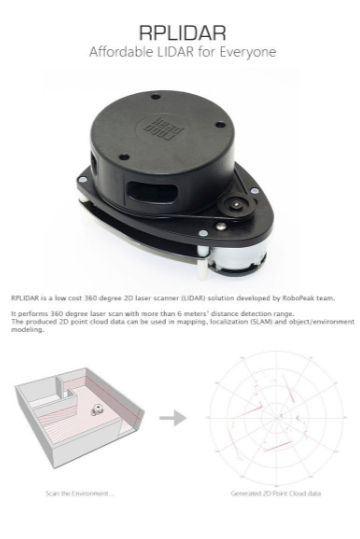

RPLiDAR A1M8 360 Degree Laser Range Finder – 6m (Radius Range) is a low cost 360-degree 2D laser scanner (LIDAR) solution developed by SLAMTEC. The system can perform a 360-degree scan within a 6-meter range. The produced 2D point cloud data can be used in mapping, localization and object/environment modeling.

RPLIDAR A1’s scanning frequency reached 5.5 Hz when sampling 360 points each round. And it can be configured up to 10 Hz maximum. RPLIDAR A1 is basically a laser triangulation measurement system. It can work excellently in all kinds of indoor and outdoor environments without sunlight.

Note: The range of this RPLiDAR is 6-meter if we are considering radius and 12-meter if we are considering diameter. So we can also name as RPLiDAR A1M8 360 Degree Laser Range Finder – 12M.

Application:

1. Home service /cleaning robot navigation and localization.
2. General robot navigation and localization.
3. Smart toy’s localization and obstacle avoidance.
4. Environment scanning and 3D re-modeling.
5. General simultaneous localization and mapping (SLAM.

System Connection:

Features:

1. Measuring distance: Up to 6 meters (Radius).
2. Measures distance data in more than 8000 times/s.
3. 360 Degree Omnidirectional Laser Range Scanning.
4. 8000 times sample rate, the highest in the current economical LIDAR industry.
5. OPTMAG Original Design, prolong the life-span.
6. Configurable Scan Rate from 2-10Hz.
7. Ideal for Robot Navigation and Localization.
8. Plug and Play.

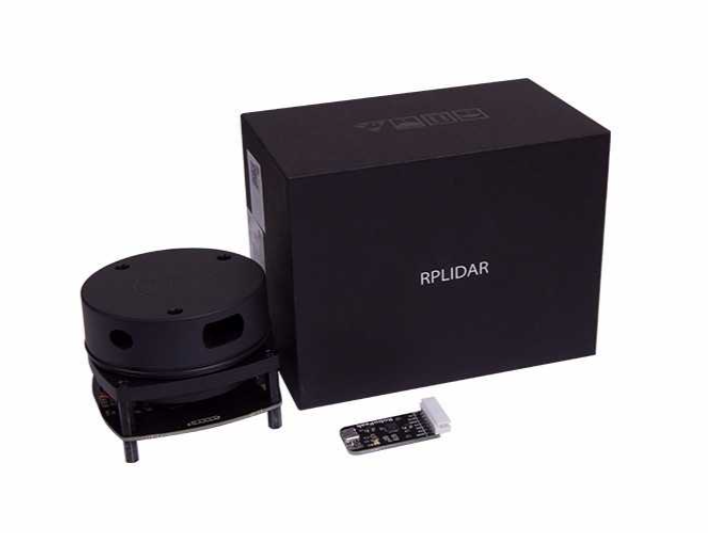

Package Includes:

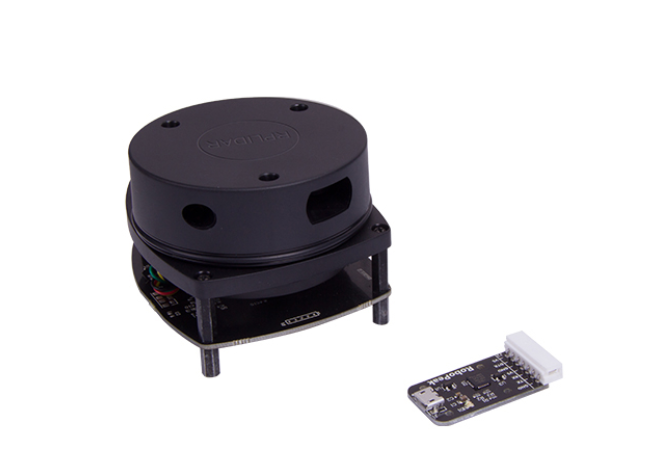

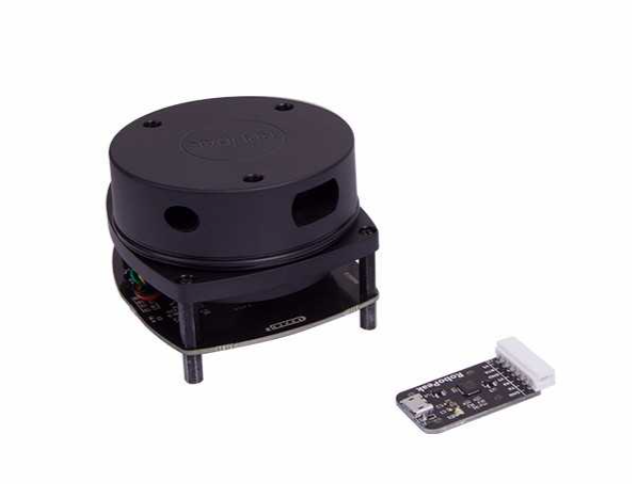

1 x RP LIDAR A1M8 360 Degrees Laser Range Finder.

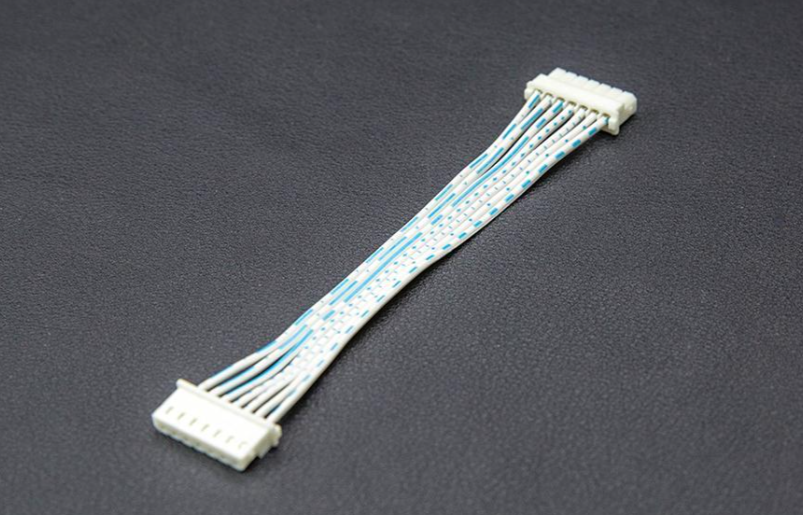

1 x Interfacing Controller and Connecting Cable.

Note: For the detailed description, find the datasheet in attachments.
