PIR Motion Sensor Detector Module HC-SR501

The PIR Motion Sensor Detector Module HC-SR501 allows you to sense motion. It is almost always used to detect the motion of a human body within the sensor’s range. It is often referred to used “PIR”, “Pyroelectric”, “Passive Infrared” and “IR Motion” sensor.

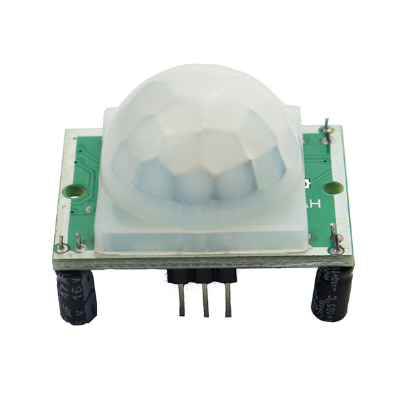

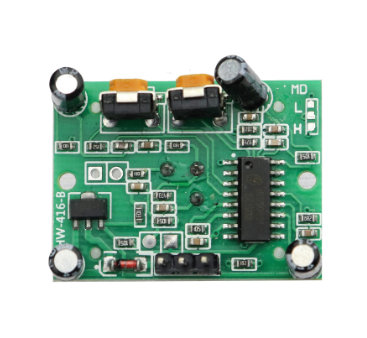

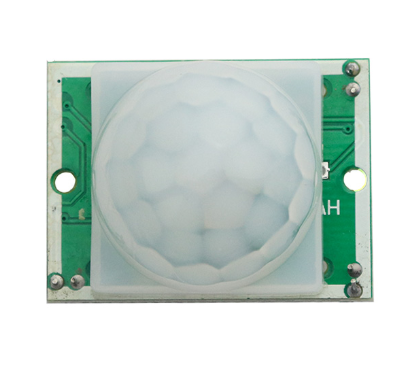

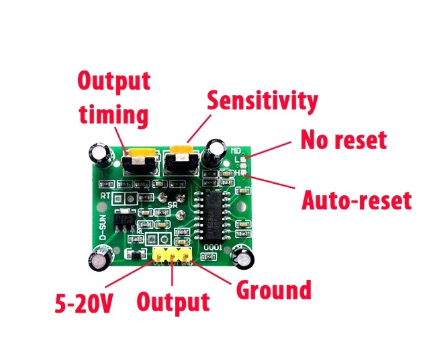

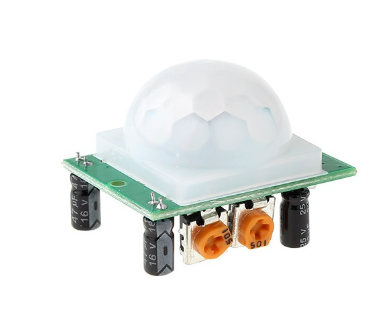

The module has an onboard pyroelectric sensor, conditioning circuitry, and a dome-shaped Fresnel lens. It has a delay time adjustment Potentiometer and sensitivity adjustment Potentiometer. Repeat Trigger Selection Jumper is also available. Compatible with ARDUINO, RASPBERRY PI, AVR, PIC, 8051, etc.

Note: The Product available in Two colors Blue and Green so while packing you may get any one of them.

 Features :

1. Infrared Sensor with Control Circuit Board
2. The Sensitivity and Holding Time Can be Adjusted
3. Blockade time: 2.5s (Default)
4. Sensitive Setting: Turn to Right, Distance Increases (About 7M); Turn to Left, Distance Reduce (About 3M)
5. Time Setting: Turn to Right, Time Increases (About 200S); Turn to Left, Time Reduce (About 5S).

Package Includes :

Useful Links :

Detecting Motion Tutorial for PIR Motion Sensor Detector Module HC-SR501
