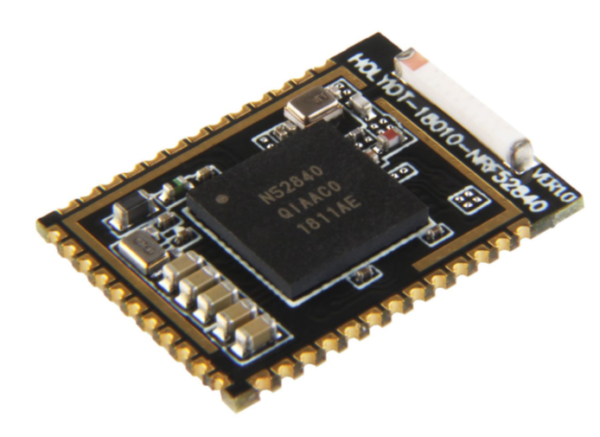

This product is a Bluetooth Low Energy (BLE) module using the Nordic NRF52840 SoC solution. The nRF52840 is designed around an ARM Cortex-M4 CPU with a floating-point unit (FPU) and has 1MB flash with cache and 256kB RAM. As such it has the ability to support complex and demanding applications as a single chip solution. It offers a wealth of peripherals that include NFC, USB and multiple interface options including Quad SPI (QSPI). Security is paramount in today’s IoT designs and the nRF52840 has high-end security features included to achieve best in class security with an ARM Cryptocell-310 cryptographic system on chip and a full AES 128-bit encryption suite.
Pin Diagram
Features:
- Full Bluetooth 5 support for the long radio
- Processing power and flash flexibility
- Multiprotocol radio
- Power Efficiency
- High-precision RSSI
- Arm cryptoCell CC310 cryptographic security model
- High-speed SPI interface 32MH
- Quad SPI interface 32MHz
- Programmable Peripheral Interface – PPI
- On-air compatible with nRF51,nRF24L and nRF24AP series
Applications:
- Internet of Things(IoT)
- SmartHome sensors
- Computer peripherals
- A4WP “Rezence” wireless charging
- Sports and fitness sensors and hubs
- Smartwatches
- Interactive games
- Wearables
- Connected white goods
- Voice-command smart remotes
- Connected health products
- RC Toys
- Building automation and sensor networks
Package Includes:
1 x nRF52840 Low Power BLE Module with Ceramic Antenna
