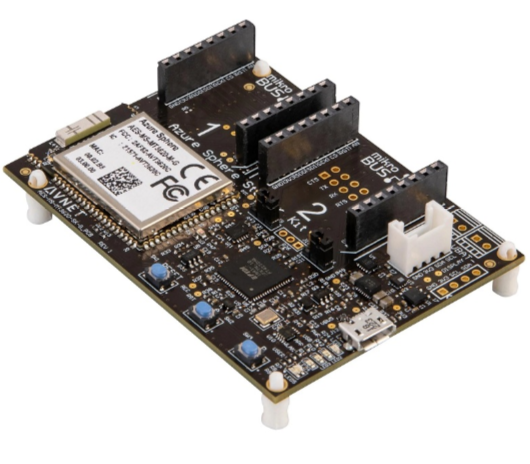

Microsoft’s Azure Sphere MT3620 Starter Kit supports rapid prototyping of highly secure, end-to-end IoT implementations using Microsoft’s Azure Sphere. The small form-factor carrier board includes a production-ready MT3620 Sphere module with Wi-Fi connectivity, along with multiple expansion interfaces for easy integration of sensors, displays, motors, relays, and more.
This Starter Kit highlights Avnet’s certified, production-ready Sphere MT3620 module which is based on the highly integrated MediaTek MT3620AN tri-core Wi-Fi SoC device. Embedded user applications targeting it’s 500 MHz ARM Cortex-A7 application processor are built and debugged using Microsoft’s popular Visual Studio IDE.
The SoC also includes two 200 MHz ARM Cortex-M4F MCU cores to meet real-time I/O requirements, plus a rich variety of on-chip peripherals (GPIO, UART, I2C, SPI, I2S, PWM, ADC) that can be assigned to any of the three processor cores.

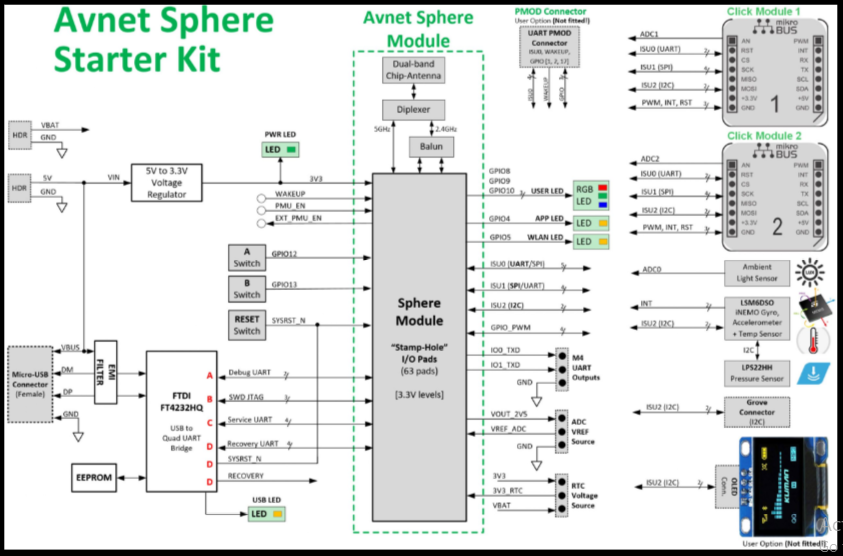

The carrier board connects the Sphere module I/Os to two MikroE Click sockets, an I2C Grove connector, a connector supporting the addition of a 128 x 64 OLED graphical display, a 3D accelerometer, 3D Gyro, temperature sensor, and an ambient light sensor. Debugging is accomplished through a USB-to-UART interface, which also provides the necessary 5V power for the board.
User applications for the embedded Sphere controller are developed in C using Microsoft’s Visual Studio IDE and the Azure Sphere SDK. Visual Studio provides a powerful, yet easy-to-use development environment for compiling and debugging application code. The combination of Visual Studio, the versatile carrier card, and the production-ready Sphere module delivers a powerful starting point for IoT developers interested in learning, prototyping, and deploying Azure Sphere based solutions.
Target Applications
- IoT edge devices
- Consumer appliances
- Smart retail
- Remote access
- Building automation
- Factory automation
Useful Links
Features:
Carrier Board
- Two MikroE Click board expansion sockets
- Grove expansion connector (I2C)
- On-board sensors
- 3-Axis accelerometer
- 3-Axis gyro
- Temperature
- Pressure/Barometric
- Interface for optional OLED 128×64 display
- USB Interface
- Supports debug, service & recovery UARTs, and JTAG
- User push switches and LEDs
- 5V to 3.3V Power regulation
- DC Supply Input:
- USB 5V from a host computer
- Terminal footprints for external 5VDC and VBAT supplies
Azure Sphere MT3620 Module
- MT3620AN SoC
- 3x ISU interfaces pre-configured for UART, SPI, I2C
- ADC/GPIO: 3x 12-bit ADC inputs (or 3 GPIOs)
- PWM/GPIO: 9x PWM outputs (or up to 24 GPIOs)
- RTC (requires VBAT supply)
- Dual-band 2.4/5GHz 802.11 a/b/g/n WiFi
- Dual-band 2.4/5GHz chip antenna
Package Includes:
1 x Carrier board with Azure Sphere MT3620 module
1 x USB Cable
1 x Quick Start Card
There are no reviews yet.
