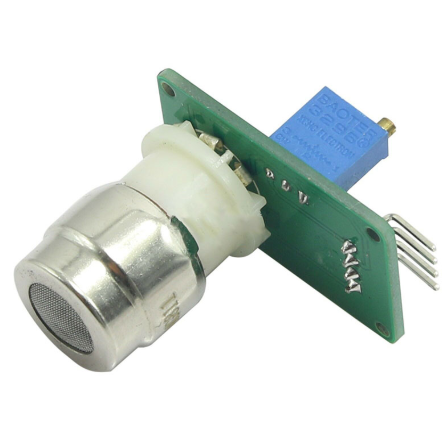

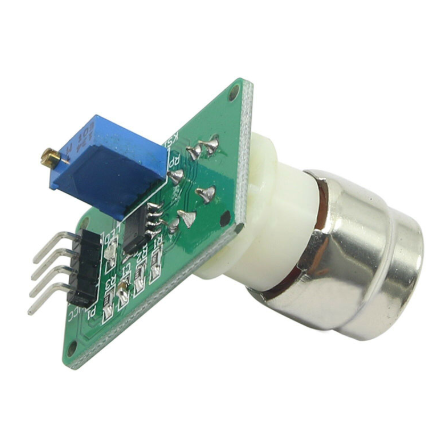

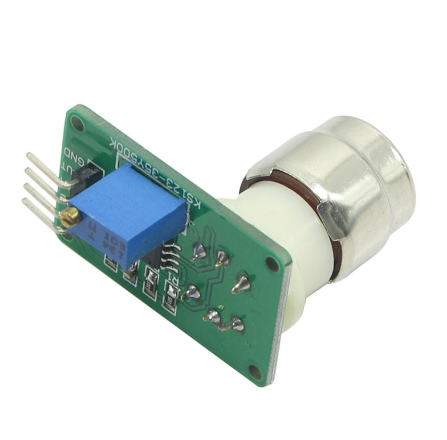

MG-811 Carbon Dioxide Sensor Module (Carbon dioxide sensor) is a carbon dioxide sensor (CO2) sensor is a Metal Oxide Sensor sensor, which must heat the tank to the specified level. (With the method of supplying power) will cause heat vapour and separate CO2 from the air. This sensor module has an MG-811 onboard as the sensor component. A signal output circuit for heating the sensor The MG-811 is highly sensitive to CO2 and less sensitive to alcohol and CO. The output voltage of the CO2 increases.
Useful for greenhouses and medical projects. Sends an analog signal that decreases as the concentration of CO2 increases. This module also includes a digital output pin with TTL output. The Potentiometer on board is used to set the Digital Output Setpoint. After setting the potentiometer threshold, once that threshold is reached, an LED on the sensor will illuminate and the digital pin will give a HIGH voltage signal.
Pinout:
- VCC: 6V ( You can use a 4 AA battery holder for this )
- AOUT: Analog Output (voltage decreases as CO2 Levels increase)
- DOUT: Digital Output that goes HIGH when the threshold is reached (set the threshold by turning the onboard potentiometer)
- GND: 0V
Specifications and Features:
- Wide detecting scope
- High sensitivity & stability
- Simple drive circuit
- Type: MG-811
- Detection Zone: 0 – 10000ppm
- Characteristic Gas: CO2 (Carbon Dioxide)
- Operating Voltage: 6V DC.
- Digital output: Active low (When it outputs a low-level signal, the indicator LED will be on)
- Analog output: Two Range Options: 0 to 2V or 0V to 4V. The default is 0V to 2V DC
- Compatible with Arduino & Raspberry Pi (for use on analog output with Raspberry Pi you will need an Analog to Digital Converter Chip)
Package Includes:
1 x MG811 Module, Air Carbon Dioxide/CO2 Sensor
