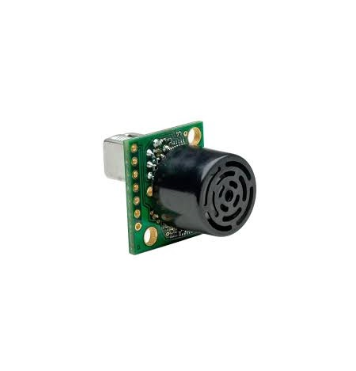

Maxbotix MB1260 XL-MaxSonar-EZL0 Ultrasonic Sensor


    Ask for Latest offer / Availability : https://bit.ly/3cjRwxb

  1. Operating Voltage: 3.3-5.5 V
  2. Sonar Sensing Range: 25-1068 cm
  3. Max. Sensing Range: 1068 cm
  4. Read Rate: 10 Hz
  5. Frequency: 42 KHz

3,618.00 5,300.00 incl. GST

This Maxbotix MB1260 XL-MaxSonar-EZL0 Ultrasonic Sensor Module is for indoor use only.

Features of the MB1260, XL-MaxSonar-EZL0, include centimeter resolution, the widest and most sensitive beam pattern of any unit from the XL‑MaxSonar‑EZ sensor line, short to long distance detection, range information from 25cm to 1068cm, a 10Hz read rate, and various output options: pulse-width, analog voltage, and RS232 serial.

This makes the MB1260 an excellent choice for use where high sensitivity, wide beam, or people detection is desired.

The MB1260 from the XL‑MaxSonar‑EZ line of sensors is a very small, less than one cubic inch, ultrasonic sensor component module. This sensor comes with mounting holes provided on the circuit board for easy installation in nearly all applications.

In addition, the MB1260 offers virtually noise free distance readings through the use of high-output acoustic power combined with continuously variable gain, real‑time background automatic calibration, real‑time waveform signature analysis, and noise rejection algorithms. This holds true even in the presence of many of the various acoustic or electrical noise sources.

Product 3D Models

These 3D model files will download with a different product name.

Key Shot IGES File ACIS 7.0 File Solid Works Part
STL File STEP File ParaSolid Part



We have the range of MaxBotix Ultrasonic Sensors available in our online shop which can fit your specific ranging requirement, check them now by clicking below

MaxBotix Ultrasonic Sensor


Features :

  1. Read from all 3 sensor outputs: Analog Voltage, RS232 Serial, Pulse Width
  2. Virtually no dead zone, objects closer than 25 cm range as 25 cm
  3. Small, lightweight module
  4. Designed for easy integration into your project or product
  5. Real-time automatic calibration (voltage, humidity, ambient noise)
  6. Firmware filtering for better noise tolerance and clutter rejection
  7. 200,000+ Hours Mean Time Between Failure
  8. Widest and the most sensitive beam of our XL-MaxSonar-EZ sensors
  9. The maximum range of 1068 cm (420 inches)
  10. Hardware gain of 4000
  11. Long range, wide detection zone for small targets

Package Includes :

1 x Maxbotix MB1260 XL-MaxSonar-EZL0 Ultrasonic Sensor


Tutorials :

Sensor Selection, Setup, and Troubleshooting
