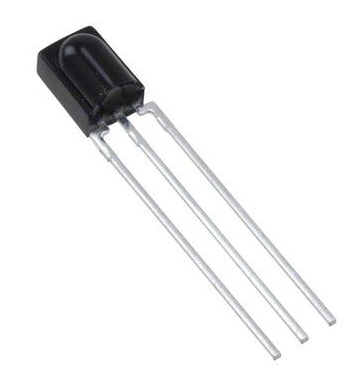

Use this IR Receiver Diode – TSOP38238, a simple IR receiver for infrared remote control of your next project. With low power consumption and an easy to use package, it mates well with embedded electronics and can be used with common IR remotes.
The TSOP382 is a miniaturized receiver for infrared remote control systems. A PIN diode and a preamplifier are assembled on a lead frame while the epoxy package acts as an IR filter. The demodulated output signal can be directly decoded by a microprocessor. The TSOP382 is compatible with all common IR remote control data formats.
Applications :
- Optical switch.
- Light detecting portion of a remote control.
- AV instruments such as Audio,TV,VCR,CD,MD,DVD,etc.
- Home appliances such as Air-conditioner, Fan,etc.
- CATV set-top boxes.
- Multi-media Equipment.
Features:
- Very low supply current.
- Photo-detector and preamplifier in one package.
- Internal filter for PCM frequency.
- Improved shielding against EMI.
- Supply voltage: 2.5 V to 5.5 V.
- Improved immunity against ambient light.
Package Includes:

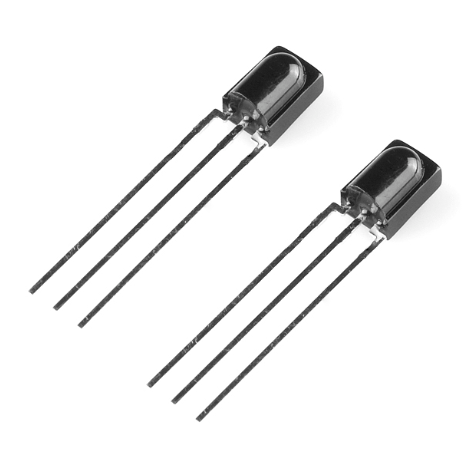

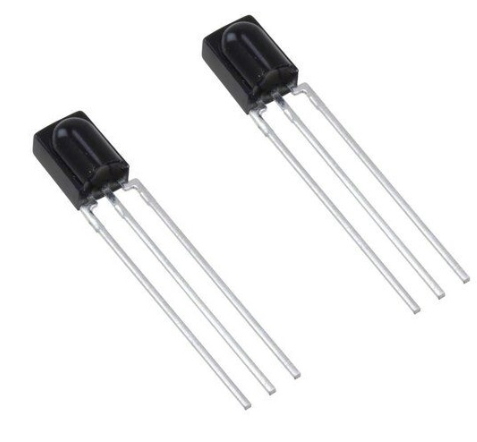

2 x IR Receiver Diode – TSOP38238.
