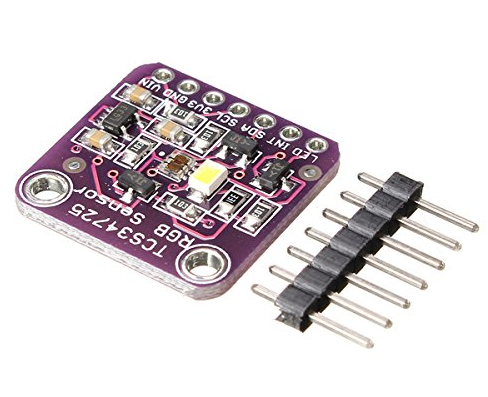

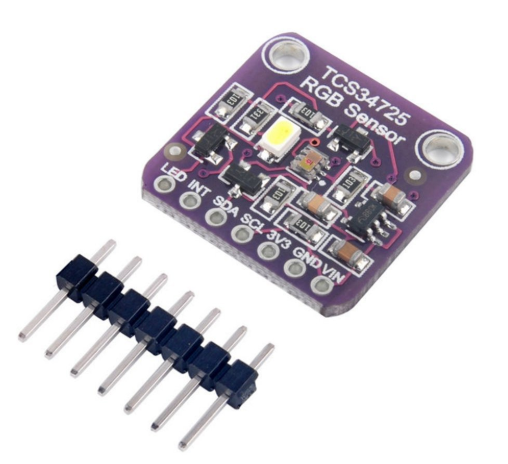

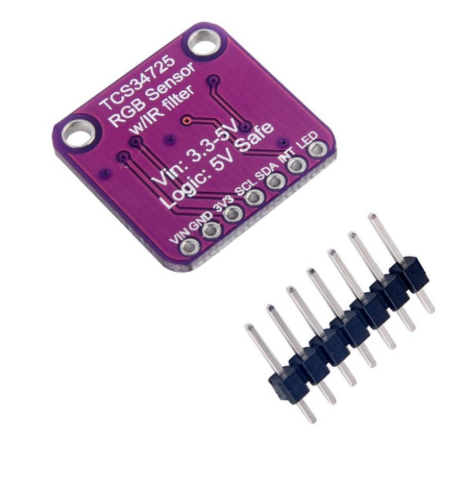

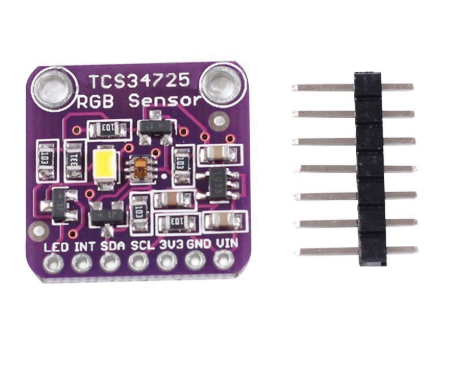

CJMCU-34725 TCS34725 Color Sensor RGB Module

The CJMCU-34725 TCS34725 Color Sensor RGB Module provides digital return values for red, green, blue (RGB) and bright light sensing digital Mingguang induction return value. Color-sensitive photodiode integrated cut and localized infrared shading filter, to minimize the incident infrared spectrum components.

So that color management more accurate. It has high sensitivity, wide dynamic range, and IR shading filters. The TCS3472 ideal for color-sensitive component solutions under varying light conditions and through attenuating materials.

An IR blocking filter, integrated on-chip and localized to the color sensing photodiodes, minimize the IR spectral component of the incoming light and allows color measurements to be made accurately. The filter means you’ll get much truer color than most sensors since humans don’t see IR. The sensor also has an incredible 3,800,000:1 dynamic range with adjustable integration time and gain so it is suited for use behind darkened glass.

High sensitivity, wide dynamic range and an infrared light blocking filter makes TCS3472 become ideal lighting conditions change and through color sensitive element attenuating materials under conditions of a solution.

We have a variety of different kinds of exciting sensors available in our following category

Miscellaneous Sensors

Features :

1. The TCS3472 device provides digital return values for red, green, blue (RGB) and bright light sensing
2. Color-sensitive photodiode integrated cut and localized infrared shading filter, to minimize the incident infrared spectrum components, so that color management more accurate.
3. The high sensitivity.
4. Wide dynamic range.
5. IR shading filters make the TCS3472 ideal for color-sensitive component solutions under varying light conditions and through attenuating materials.

Package Includes :

1 x CJMCU-34725 TCS34725 Color Sensor RGB Development Board Module.

1 x 7*1 Burg connector Pins(Straight) (Unsoldered).
