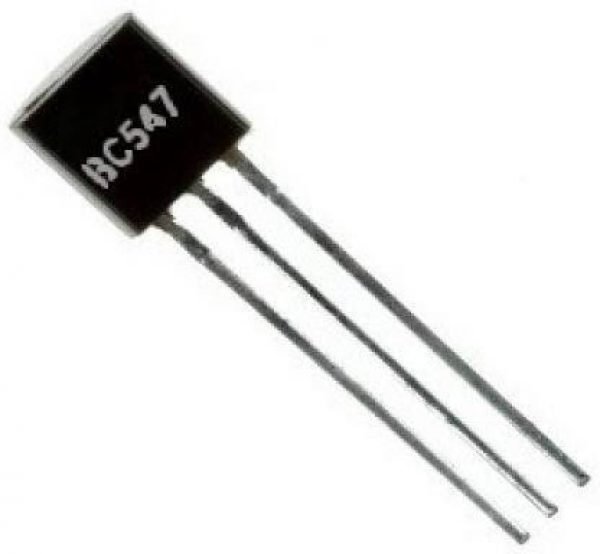

BC547 NPN Transistor 3Pin Silicon Transistor

  • Type Designator: BC547
  • Material of Transistor: Si
  • Polarity: NPN
  • Maximum Collector Power Dissipation (Pc): 0.5 W
  • Maximum Collector-Base Voltage |Vcb|: 50 V

₹10.00 ₹15.00 incl. GST

The BC547 transistors are NPN silicon epitaxial planar transistors. The transistors are designed for use as general-purpose amplifiers and switches requiring collector currents to 500 mA. The transistors measure approx. 0.7 inch long and 0.1 inches wide.

package includes:

  • 1x BC547 NPN Transistor
Category:

Maximum Collector Power Dissipation (Pc): 0.5 W

Maximum Collector-Base Voltage |Vcb|: 50 V

Maximum Collector-Emitter Voltage |Vce|: 50 V

Maximum Emitter-Base Voltage |Veb|: 6 V

Maximum Collector Current |Ic max|: 0.1 A

Max. Operating Junction Temperature (Tj): 150 °C

Transition Frequency (ft): 300 MHz

Collector Capacitance (Cc): 6 pF

Forward Current Transfer Ratio (hFE), MIN: 110
