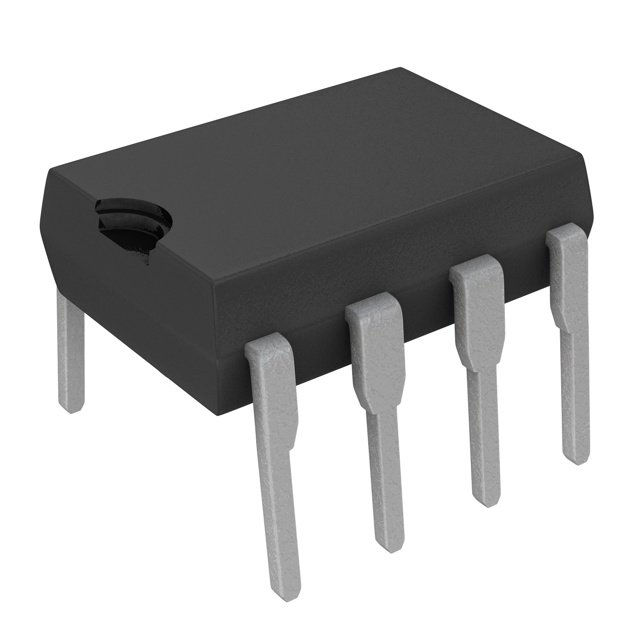

BA10358 – Op Amps DUAL LOW POWER 32V (pack of 10)


  • Number of Channels: 2 Channel
  • GBP – Gain Bandwidth Product:0.5 MHz
  • Vos – Input Offset Voltage:7 mV

410.00 590.00 incl. GST

General-purpose BA10358/BA10324A family and high-reliability BA2904 /BA2902 family integrate two or four independent Op-Amps and phase compensation capacitors on a single chip and have some features of high-gain, low power consumption, and operating voltage range of 3[V] to 32[V] (single power supply ). BA3404 family is realized high speed operation and reduces the crossover distortions that compare with BA10358 family.

Package includes :

1 x BA10358 – Op Amps DUAL LOW POWER 32V

Category:
  • Number of Channels: 2 Channel
  • GBP – Gain Bandwidth Product:0.5 MHz
  • SR – Slew Rate:0.2 V/us
  • CMRR – Common Mode Rejection Ratio:65 dB
  • Output Current per Channel:20 mA
  • Ib – Input Bias Current:250 nA
  • Vos – Input Offset Voltage:7 mV
  • Operating Supply Voltage: 3 V to 32 V, +/- 1.5 V to +/- 16 V
  • PSRR – Power Supply Rejection Ratio: 65 dB
  • Supply Current per Channel: 0.7 mA
