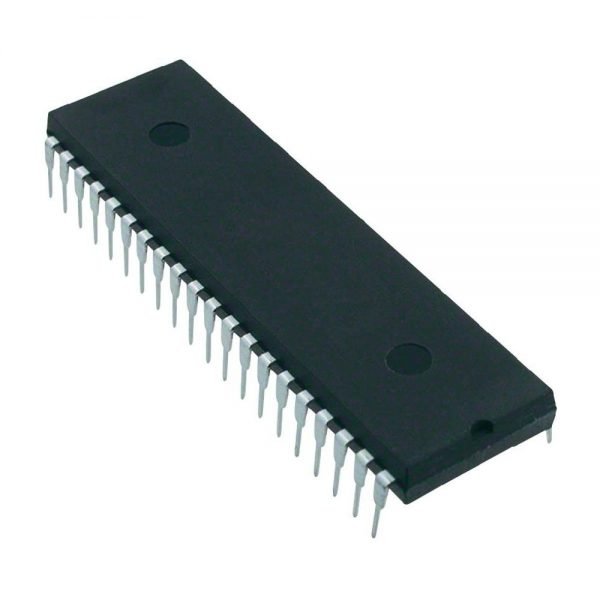

Atmega16 – 40Pins 16MHz 16kb 8-bit Microcontroller. High-performance, Low-power AVR 8-bit Microcontroller
Advanced RISC Architecture.
Package includes :
1 x Atmega16 Microcontroller.
-13%
Microcontrollers
Atmega16 Microcontroller
- High-performance, Low-power AVR 8-bit Microcontroller
- Advanced RISC Architecture
- 131 Powerful Instructions – Most Single Clock Cycle Execution
- 32 x 8 General Purpose Working Registers
- Up to 6 MIPS Throughput at 16MHz
- Fully Static Operation
- On-chip 2-cycle Multiplier
- Nonvolatile Program and Data Memories
- 16k Bytes of In-System Self-Programmable Flash
- Optional Boot Code Section with Independent Lock Bits
- 512K Bytes EEPROM
- Programming Lock for Software Security
- JTAG (IEEE std. 1149.1 Compliant) Interface
- Boundary-scan Capabilities According to the JTAG Standard
- Extensive On-chip Debug Support
- Programming of Flash, EEPROM, Fuses, and Lock Bits through the JAGS Interface
₹188.00 ₹215.00 incl. GST
I/O and Packages
32 Programmable I/O Lines
40-pin PDIP, 44-lead TQFP, and 44-pad MLF
Operating Voltages
4.5-5.5V for ATmega16
Speed Grades
0-16 MHz for ATmega16
Power Consumption at 4 Mhz, 3V, 35 °C
Active: 1.1mA
Idle Mode: 0.35mA
Power-down Mode: < 1µA
Based on 0 reviews
Be the first to review “Atmega16 Microcontroller”
