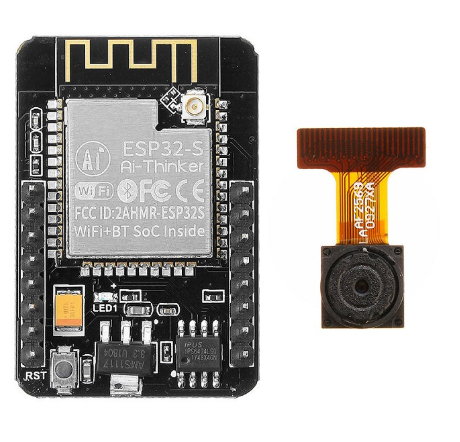

Ai Thinker ESP32 CAM Development Board WiFi+Bluetooth with OV2640 Camera Module

The ESP32-CAM is an Ai-Thinker’s Original ESP32 CAM WiFi+Bluetooth with OV2640 Camera Module based on the ESP32 chip with the additional facility of using a camera. It is ideal for various IoT applications. The ESP32-CAM has a very competitive small-sized camera module that can operate independently as a minimum system.

Ai-Thinker ESP32 CAM can be widely used in various IoT applications. It is suitable for home smart devices, industrial wireless control, wireless monitoring, QR wireless identification, wireless positioning system signals and other IoT applications. It is an ideal solution for IoT applications.

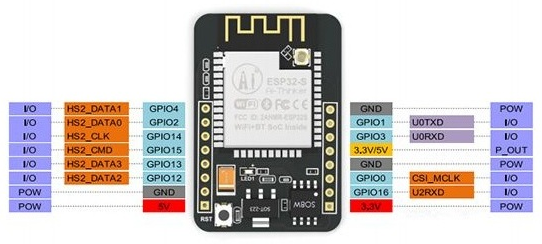

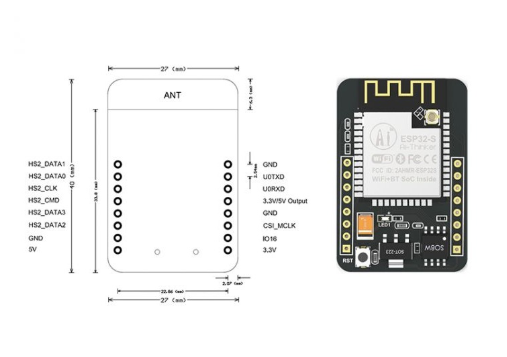

Pin Configuration:

ESP32-CAM is packaged in DIP and can be directly plugged into the backplane for quick production. It provides customers with a highly reliable connection method and is convenient for use in various IoT hardware terminals.

Features:

1. Ultra-small 802.11b/g/n Wi-Fi + BT/BLE SoC module
2. Low-power dual-core 32-bit CPU for application processors
3. Up to 240MHz, up to 600 DMIPS
4. Built-in 520 KB SRAM, external 4M PSRAM
5. Supports interfaces such as UART/SPI/I2C/PWM/ADC/DAC
6. Support OV2640 and OV7670 cameras with built-in flash
7. Support for images WiFI upload
8. Support TF card
9. Support multiple sleep modes
10. Embedded Lwip and FreeRTOS
11. Support STA/AP/STA+AP working mode
12. Support Smart Config/AirKiss One-click distribution network
13. Support for serial local upgrade and remote firmware upgrade (FOTA)

Useful Links:

Setting Up Ai-Thinker ESP32-CAM in the Arduino IDE

Package Includes:

1 x Ai-Thinker ESP32 CAM Development Board WiFi+Bluetooth with OV2640 Camera Module
