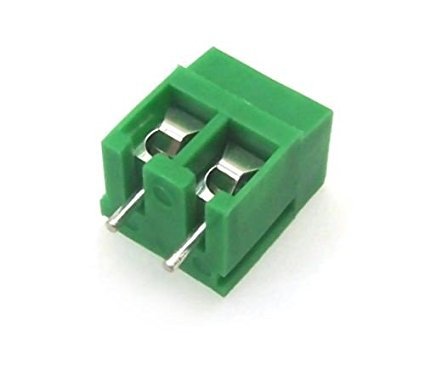

5pc 2-Pole PCB Screw Terminal

5pc 2-Pole PCB Screw Terminal

        Ask for Latest offer / Availability : https://bit.ly/3vyRESH

  • Rust Free metal contact.
  • High quality plastic caps for better grip.
  • High current rating.
  • Good quality Insulating material for shock proof mounting.
  • Saves space due to the small design
  • Screw connection with tension sleeve
  • Maximum contact force ensures a low-temperature rise
  • Connection in accordance with EN-VDE Standard.

₹60.00 ₹80.00 incl. GST

The screw connectionsystem is known and accepted worldwide as the most frequently used type of wire termination. Due to highest contact forces, top reliability is attained regardless of the conductor cross section.

Package includes :

  • 1x 2 Pin Screw Terminal Block Connector
SKU: PGI-00154 Category:
  • Rating: – 16A/250V
  • Dielectric strength: – ≥ 2kV
  • Insulation resistance: – ≥ 5MΩ
  • Working temperature: – -20°C to 125°C
  • Short period: – 160°C
  • Moulding: – UL94-V0 flame retardant Lexan
  • Pin/terminal: – 5µ tinned, nickel plated brass
  • Wire protector: – Tin plated phosphor bronze
  • Screw/torque: – M2.5 steel, 6µ zinc colour passivated and tropicalised/0.4Nm
  • Recommended PCB hole: – size ø1.1mm

DIY projects needing Screw type terminal.
